Partially implements a rendering stage that uses at least one render queue for rendering geometry from the scene graph. More...

#include <GeometryStage.hpp>

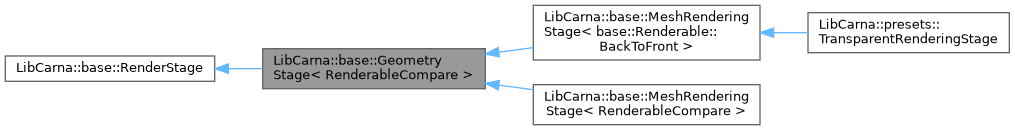

Inheritance diagram for LibCarna::base::GeometryStage< RenderableCompare >:

Collaboration diagram for LibCarna::base::GeometryStage< RenderableCompare >:

Public Member Functions
	GeometryStage (unsigned int geometryType, unsigned int geometryTypeMask=RenderQueue< RenderableCompare >::EXACT_MATCH_GEOMETRY_TYPE_MASK)
	Instantiates s.t. the predefined rendering queue enqueues such LibCarna::base::Geometry scene graph nodes, whose geometry type AND-linked with geometryTypeMask equals the geometryType specified here.

virtual	~GeometryStage ()
	Releases acquired video resources.

virtual void	prepareFrame (Node &root) override
	Called once before each frame.

virtual void	renderPass (const math::Matrix4f &viewTransform, RenderTask &rt, const Viewport &vp) override
	Called once per pass.

std::size_t	renderedPassesCount () const
	Tells the number of passes rendered so far since the beginning of the current frame.

template<typename GeometryFeatureType >
GeometryFeatureType::ManagedInterface &	videoResource (GeometryFeatureType &geometryFeature) const
	Interfaces the geometryFeature video resources that were acquired by this rendering stage.

template<typename GeometryFeatureType >
const GeometryFeatureType::ManagedInterface &	videoResource (const GeometryFeatureType &geometryFeature) const

Public Member Functions inherited from LibCarna::base::RenderStage
	RenderStage ()
	Instantiates in enabled-state.

virtual	~RenderStage ()
	Deletes.

void	setViewTransformFixed (bool viewTransformFixed)
	Sets whether the view transform is pass-invariant for the duration of a single frame.

bool	isViewTransformFixed () const
	Tells whether the view transform is pass-invariant for the duration of a single frame.

virtual void	reshape (FrameRenderer &fr, unsigned int width, unsigned int height)
	Orders this stage to reshape its buffers according to the specified width and height.

bool	isInitialized () const
	Tells whether this stage is ready for rendering.

bool	isEnabled () const
	Tells whether this stage is enabled. Disabled stages are not rendered by render tasks.

void	setEnabled (bool)
	Sets whether this stage is enabled. Disabled stages are not rendered by render tasks.

base::FrameRenderer &	renderer ()
	References the renderer this stage belongs to.

const base::FrameRenderer &	renderer () const

void	addRenderStageListener (RenderStageListener &listener)
	Adds listener to the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).

void	removeRenderStageListener (RenderStageListener &listener)
	Removes listener from the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).

Public Attributes
const unsigned int	geometryType
	Renders such geometries whose type AND-linked with geometryTypeMask equals this.

const unsigned int	geometryTypeMask
	Renders such geometries whose type AND-linked with this equals geometryType.

Protected Member Functions
void	activateGLContext () const
	Ensures that the OpenGL context of the hosting LibCarna::base::FrameRenderer is the current one.

virtual void	buildRenderQueues (Node &root, const math::Matrix4f &viewTransform)
	Builds the rendering queues of this stage.

virtual void	rewindRenderQueues ()
	Rewinds the rendering queues of this stage.

virtual void	updateRenderQueues (const math::Matrix4f &viewTransform)
	Recomputes the model-view transforms of the renderables enqueued by this stage.

virtual void	render (const Renderable &renderable)=0
	Renders the renderable.

Protected Attributes
RenderQueue< RenderableCompare >	rq
	Holds the predefined rendering queue of this rendering stage.

Detailed Description

template<typename RenderableCompare>
class LibCarna::base::GeometryStage< RenderableCompare >

Partially implements a rendering stage that uses at least one render queue for rendering geometry from the scene graph.

Parameters

RenderableCompare Defines partial order of renderables that is applied to the predefined rendering queue of this stage. Set this to void if no particular order is required.

Override updateRenderQueues and rewindRenderQueues if you require further rendering queues.

See also: Refer to the documentation of the rendering process for further notes on how rendering stages operate.

Author: Leonid Kostrykin

Definition at line 62 of file GeometryStage.hpp.

Constructor & Destructor Documentation

◆ GeometryStage()

template<typename RenderableCompare >

LibCarna::base::GeometryStage< RenderableCompare >::GeometryStage	(	unsigned int	geometryType,
		unsigned int	geometryTypeMask = `RenderQueue< RenderableCompare >::EXACT_MATCH_GEOMETRY_TYPE_MASK`
	)

Instantiates s.t. the predefined rendering queue enqueues such LibCarna::base::Geometry scene graph nodes, whose geometry type AND-linked with geometryTypeMask equals the geometryType specified here.

Definition at line 155 of file GeometryStage.hpp.

◆ ~GeometryStage()

template<typename RenderableCompare >

LibCarna::base::GeometryStage< RenderableCompare >::~GeometryStage ( )

virtual

Releases acquired video resources.

Definition at line 166 of file GeometryStage.hpp.

Member Function Documentation

◆ activateGLContext()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::activateGLContext ( ) const

protected

Ensures that the OpenGL context of the hosting LibCarna::base::FrameRenderer is the current one.

Definition at line 182 of file GeometryStage.hpp.

◆ buildRenderQueues()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::buildRenderQueues	(	Node &	root,
		const math::Matrix4f &	viewTransform
	)

protectedvirtual

Builds the rendering queues of this stage.

Reimplemented in LibCarna::presets::CuttingPlanesStage.

Definition at line 208 of file GeometryStage.hpp.

◆ prepareFrame()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::prepareFrame ( Node & root )

overridevirtual

Called once before each frame.

Reimplemented from LibCarna::base::RenderStage.

Definition at line 192 of file GeometryStage.hpp.

◆ render()

template<typename RenderableCompare >

virtual void LibCarna::base::GeometryStage< RenderableCompare >::render ( const Renderable & renderable )

protectedpure virtual

Renders the renderable.

Implemented in LibCarna::presets::CuttingPlanesStage, LibCarna::presets::VolumeRenderingStage, LibCarna::presets::MeshColorCodingStage, LibCarna::base::MeshRenderingStage< RenderableCompare >, and LibCarna::base::MeshRenderingStage< base::Renderable::BackToFront >.

◆ renderedPassesCount()

template<typename RenderableCompare >

std::size_t LibCarna::base::GeometryStage< RenderableCompare >::renderedPassesCount ( ) const

Tells the number of passes rendered so far since the beginning of the current frame.

Definition at line 201 of file GeometryStage.hpp.

◆ renderPass()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::renderPass	(	const math::Matrix4f &	viewTransform,
		RenderTask &	rt,
		const Viewport &	vp
	)

overridevirtual

Called once per pass.

If this rendering stage maintains one or more LibCarna::base::RenderQueue objects, than this is the right place to build them. Note that the queues need to be rebuilt only once per frame and not per pass, unless isViewTransformFixed is false. If it is true and this is not the first invocation of this method since the last time prepareFrame was called, rewinding the queue will be sufficient.

Implements LibCarna::base::RenderStage.

Reimplemented in LibCarna::presets::CuttingPlanesStage, LibCarna::presets::DRRStage, LibCarna::presets::DVRStage, LibCarna::presets::MaskRenderingStage, LibCarna::presets::MeshColorCodingStage, LibCarna::presets::MIPStage, LibCarna::presets::TransparentRenderingStage, LibCarna::presets::VolumeRenderingStage, LibCarna::base::MeshRenderingStage< RenderableCompare >, and LibCarna::base::MeshRenderingStage< base::Renderable::BackToFront >.

Definition at line 229 of file GeometryStage.hpp.

◆ rewindRenderQueues()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::rewindRenderQueues ( )

protectedvirtual

Rewinds the rendering queues of this stage.

Reimplemented in LibCarna::presets::CuttingPlanesStage.

Definition at line 215 of file GeometryStage.hpp.

◆ updateRenderQueues()

template<typename RenderableCompare >

void LibCarna::base::GeometryStage< RenderableCompare >::updateRenderQueues ( const math::Matrix4f & viewTransform )

protectedvirtual

Recomputes the model-view transforms of the renderables enqueued by this stage.

Reimplemented in LibCarna::presets::CuttingPlanesStage.

Definition at line 222 of file GeometryStage.hpp.

◆ videoResource() [1/2]

template<typename RenderableCompare >

template<typename GeometryFeatureType >

const GeometryFeatureType::ManagedInterface & LibCarna::base::GeometryStage< RenderableCompare >::videoResource ( const GeometryFeatureType & geometryFeature ) const

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 309 of file GeometryStage.hpp.

◆ videoResource() [2/2]

template<typename RenderableCompare >

template<typename GeometryFeatureType >

GeometryFeatureType::ManagedInterface & LibCarna::base::GeometryStage< RenderableCompare >::videoResource ( GeometryFeatureType & geometryFeature ) const

Interfaces the geometryFeature video resources that were acquired by this rendering stage.

Definition at line 298 of file GeometryStage.hpp.
