LibCarna::presets::TransparentRenderingStage Class Reference

Implements rendering stage that renders transparent meshes. More...

#include <TransparentRenderingStage.hpp>

Inheritance diagram for LibCarna::presets::TransparentRenderingStage:

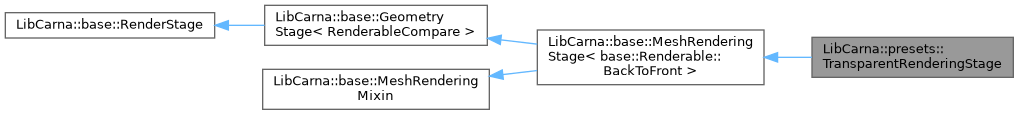

Collaboration diagram for LibCarna::presets::TransparentRenderingStage:

Public Member Functions
	TransparentRenderingStage (unsigned int geometryType)
	Instantiates.
virtual void	renderPass (const base::math::Matrix4f &viewTransform, base::RenderTask &rt, const base::Viewport &vp) override
	Renders transparent geometries with enabled blending and disabled depth writing.
Public Member Functions inherited from LibCarna::base::MeshRenderingStage< base::Renderable::BackToFront >
	MeshRenderingStage (unsigned int geometryType)
	Instantiates.
Public Member Functions inherited from LibCarna::base::GeometryStage< RenderableCompare >
	GeometryStage (unsigned int geometryType, unsigned int geometryTypeMask=RenderQueue< RenderableCompare >::EXACT_MATCH_GEOMETRY_TYPE_MASK)
	Instantiates s.t. the predefined rendering queue enqueues such LibCarna::base::Geometry scene graph nodes, whose geometry type AND-linked with geometryTypeMask equals the geometryType specified here.
virtual	~GeometryStage ()
	Releases acquired video resources.
virtual void	prepareFrame (Node &root) override
	Called once before each frame.
std::size_t	renderedPassesCount () const
	Tells the number of passes rendered so far since the beginning of the current frame.
template<typename GeometryFeatureType >
GeometryFeatureType::ManagedInterface &	videoResource (GeometryFeatureType &geometryFeature) const
	Interfaces the geometryFeature video resources that were acquired by this rendering stage.
template<typename GeometryFeatureType >
const GeometryFeatureType::ManagedInterface &	videoResource (const GeometryFeatureType &geometryFeature) const
Public Member Functions inherited from LibCarna::base::RenderStage
	RenderStage ()
	Instantiates in enabled-state.
virtual	~RenderStage ()
	Deletes.
void	setViewTransformFixed (bool viewTransformFixed)
	Sets whether the view transform is pass-invariant for the duration of a single frame.
bool	isViewTransformFixed () const
	Tells whether the view transform is pass-invariant for the duration of a single frame.
virtual void	reshape (FrameRenderer &fr, unsigned int width, unsigned int height)
	Orders this stage to reshape its buffers according to the specified width and height.
bool	isInitialized () const
	Tells whether this stage is ready for rendering.
bool	isEnabled () const
	Tells whether this stage is enabled. Disabled stages are not rendered by render tasks.
void	setEnabled (bool)
	Sets whether this stage is enabled. Disabled stages are not rendered by render tasks.
base::FrameRenderer &	renderer ()
	References the renderer this stage belongs to.
const base::FrameRenderer &	renderer () const
void	addRenderStageListener (RenderStageListener &listener)
	Adds listener to the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).
void	removeRenderStageListener (RenderStageListener &listener)
	Removes listener from the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).
Public Member Functions inherited from LibCarna::base::MeshRenderingMixin
	MeshRenderingMixin (unsigned int geometryType)
	Instantiates.
virtual	~MeshRenderingMixin ()
	Does nothing.

Additional Inherited Members
Public Attributes inherited from LibCarna::base::GeometryStage< RenderableCompare >
const unsigned int	geometryType
	Renders such geometries whose type AND-linked with geometryTypeMask equals this.
const unsigned int	geometryTypeMask
	Renders such geometries whose type AND-linked with this equals geometryType.
Public Attributes inherited from LibCarna::base::MeshRenderingMixin
const unsigned int	geometryType
	Holds the geometry type rendered by this MeshRenderingStage.
Static Public Attributes inherited from LibCarna::base::MeshRenderingMixin
static const unsigned int	DEFAULT_ROLE_MESH = 0
	Identifies the Mesh object that MeshRenderingStage uses for rendering.
static const unsigned int	DEFAULT_ROLE_MATERIAL = 1
	Identifies the Material object that MeshRenderingStage uses for rendering.
Protected Member Functions inherited from LibCarna::base::MeshRenderingStage< base::Renderable::BackToFront >
virtual void	render (const Renderable &renderable) override
	Renders the renderable.
Protected Member Functions inherited from LibCarna::base::GeometryStage< RenderableCompare >
void	activateGLContext () const
	Ensures that the OpenGL context of the hosting LibCarna::base::FrameRenderer is the current one.
virtual void	buildRenderQueues (Node &root, const math::Matrix4f &viewTransform)
	Builds the rendering queues of this stage.
virtual void	rewindRenderQueues ()
	Rewinds the rendering queues of this stage.
virtual void	updateRenderQueues (const math::Matrix4f &viewTransform)
	Recomputes the model-view transforms of the renderables enqueued by this stage.
Protected Attributes inherited from LibCarna::base::GeometryStage< RenderableCompare >
RenderQueue< RenderableCompare >	rq
	Holds the predefined rendering queue of this rendering stage.

Detailed Description

Implements rendering stage that renders transparent meshes.

The TransparentRenderingStage constructor takes a geometry type parameter:

    transparent = new presets::TransparentRenderingStage( GEOMETRY_TYPE_TRANSPARENT );
    renderer->appendStage( transparent );

The concept of geometry types is explained here.

Note

In the rendering process this stage will usually be inserted after such stages that render opaque geometry, like CuttingPlanesStage and OpaqueRenderingStage.

The following example code configures the scene s.t. it produces the rendering presented further below:

    base::ManagedMeshBase& boxMesh = base::MeshFactory< base::PVertex >::createBox( 40, 40, 40 );
    base::Material& redMaterial   = base::Material::create( "unshaded" );
    base::Material& greenMaterial = base::Material::create( "unshaded" );
    redMaterial  .setParameter( "color", base::math::Vector4f( 1, 0, 0, 0.5f ) );
    greenMaterial.setParameter( "color", base::math::Vector4f( 0, 1, 0, 0.5f ) );

    base::Geometry* const box1 = new base::Geometry( GEOMETRY_TYPE_TRANSPARENT );
    base::Geometry* const box2 = new base::Geometry( GEOMETRY_TYPE_TRANSPARENT );

    box1->putFeature( presets::TransparentRenderingStage::DEFAULT_ROLE_MESH, boxMesh );
    box2->putFeature( presets::TransparentRenderingStage::DEFAULT_ROLE_MESH, boxMesh );

    box1->putFeature( presets::TransparentRenderingStage::DEFAULT_ROLE_MATERIAL,   redMaterial );
    box2->putFeature( presets::TransparentRenderingStage::DEFAULT_ROLE_MATERIAL, greenMaterial );

    boxMesh.release();
    redMaterial.release();
    greenMaterial.release();

    scene->root->attachChild( box1 );
    scene->root->attachChild( box2 );

    box1->localTransform = base::math::translation4f( -10, -10, -40 );
    box2->localTransform = base::math::translation4f( +10, +10, +40 );

The concept of materials, meshes and other geometry feature is explained here.

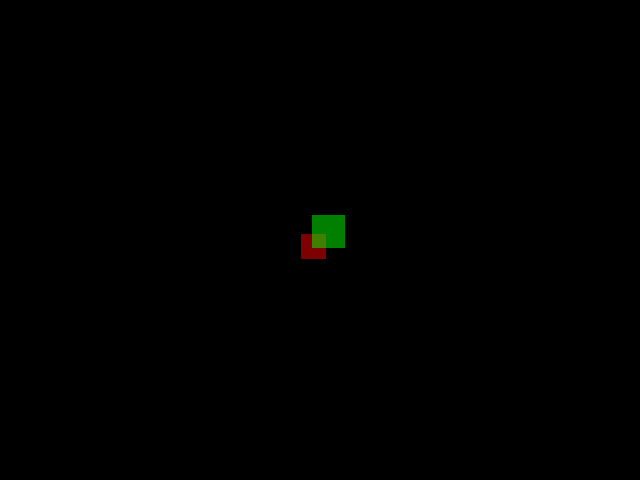

exemplary rendering of two box meshes from code above

Author

Leonid Kostrykin

Definition at line 63 of file TransparentRenderingStage.hpp.

Constructor & Destructor Documentation

TransparentRenderingStage()

LibCarna::presets::TransparentRenderingStage::TransparentRenderingStage ( unsigned int  geometryType )

explicit

Instantiates.

Parameters

geometryType

is the geometry type rendered by this stage.

Member Function Documentation

renderPass()

virtual void LibCarna::presets::TransparentRenderingStage::renderPass ( const base::math::Matrix4f &  viewTransform, base::RenderTask &  rt, const base::Viewport &  vp  )

overridevirtual

Renders transparent geometries with enabled blending and disabled depth writing.

Reimplemented from LibCarna::base::MeshRenderingStage< base::Renderable::BackToFront >.

---

The documentation for this class was generated from the following file:

• include/LibCarna/presets/TransparentRenderingStage.hpp
