Renders cutting planes of volume geometries in the scene. More...

#include <CuttingPlanesStage.hpp>

Inheritance diagram for LibCarna::presets::CuttingPlanesStage:

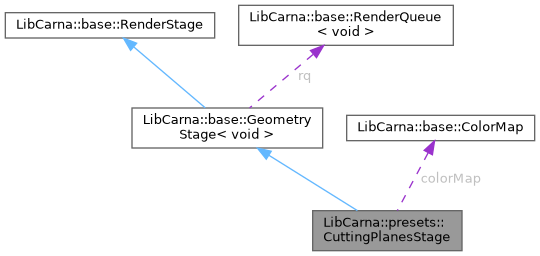

Collaboration diagram for LibCarna::presets::CuttingPlanesStage:

Public Member Functions
	CuttingPlanesStage (unsigned int volumeGeometryType, unsigned int planeGeometryType, unsigned int colorMapResolution=base::ColorMap::DEFAULT_RESOLUTION)
	Instantiates.

virtual	~CuttingPlanesStage ()
	Deletes.

virtual void	renderPass (const base::math::Matrix4f &viewTransform, base::RenderTask &rt, const base::Viewport &vp) override
	Called once per pass.

void	setWindowingLevel (float windowingLevel)
	Sets windowing level to windowingLevel.

void	setWindowingWidth (float windowingWidth)
	Sets windowing level to windowingWidth.

void	setWindowingWidth (unsigned int windowingWidth)

float	windowingLevel () const
	Tells the windowing level intensity.

float	windowingWidth () const
	Tells the windowing width.

Public Member Functions inherited from LibCarna::base::GeometryStage< void >
	GeometryStage (unsigned int geometryType, unsigned int geometryTypeMask=RenderQueue< void >::EXACT_MATCH_GEOMETRY_TYPE_MASK)
	Instantiates s.t. the predefined rendering queue enqueues such LibCarna::base::Geometry scene graph nodes, whose geometry type AND-linked with geometryTypeMask equals the geometryType specified here.

virtual	~GeometryStage ()
	Releases acquired video resources.

virtual void	prepareFrame (Node &root) override
	Called once before each frame.

std::size_t	renderedPassesCount () const
	Tells the number of passes rendered so far since the beginning of the current frame.

GeometryFeatureType::ManagedInterface &	videoResource (GeometryFeatureType &geometryFeature) const
	Interfaces the geometryFeature video resources that were acquired by this rendering stage.

const GeometryFeatureType::ManagedInterface &	videoResource (const GeometryFeatureType &geometryFeature) const

Public Member Functions inherited from LibCarna::base::RenderStage
	RenderStage ()
	Instantiates in enabled-state.

virtual	~RenderStage ()
	Deletes.

void	setViewTransformFixed (bool viewTransformFixed)
	Sets whether the view transform is pass-invariant for the duration of a single frame.

bool	isViewTransformFixed () const
	Tells whether the view transform is pass-invariant for the duration of a single frame.

virtual void	reshape (FrameRenderer &fr, unsigned int width, unsigned int height)
	Orders this stage to reshape its buffers according to the specified width and height.

bool	isInitialized () const
	Tells whether this stage is ready for rendering.

bool	isEnabled () const
	Tells whether this stage is enabled. Disabled stages are not rendered by render tasks.

void	setEnabled (bool)
	Sets whether this stage is enabled. Disabled stages are not rendered by render tasks.

base::FrameRenderer &	renderer ()
	References the renderer this stage belongs to.

const base::FrameRenderer &	renderer () const

void	addRenderStageListener (RenderStageListener &listener)
	Adds listener to the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).

void	removeRenderStageListener (RenderStageListener &listener)
	Removes listener from the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).

Public Attributes
const unsigned int	volumeGeometryType
	Renders such volume geometries whose type equals this.

const unsigned int	planeGeometryType
	Renders such plane geometries whose type equals this.

base::ColorMap	colorMap
	The color map used for the rendering.

Public Attributes inherited from LibCarna::base::GeometryStage< void >
const unsigned int	geometryType
	Renders such geometries whose type AND-linked with geometryTypeMask equals this.

const unsigned int	geometryTypeMask
	Renders such geometries whose type AND-linked with this equals geometryType.

Static Public Attributes
static const float	DEFAULT_WINDOWING_WIDTH
	Holds the default value for setWindowingWidth.

static const float	DEFAULT_WINDOWING_LEVEL
	Holds the default value for setWindowingLevel.

static const unsigned int	ROLE_INTENSITIES
	Holds the role that intensity volume data is expected to take when attached to base::Geometry nodes.

Protected Member Functions
virtual void	buildRenderQueues (base::Node &root, const base::math::Matrix4f &viewTransform) override
	Builds the rendering queues of this stage.

virtual void	rewindRenderQueues () override
	Rewinds the rendering queues of this stage.

virtual void	updateRenderQueues (const base::math::Matrix4f &viewTransform) override
	Recomputes the model-view transforms of the renderables enqueued by this stage.

virtual void	render (const base::Renderable &) override
	Renders the renderable.

Protected Member Functions inherited from LibCarna::base::GeometryStage< void >
void	activateGLContext () const
	Ensures that the OpenGL context of the hosting LibCarna::base::FrameRenderer is the current one.

Additional Inherited Members
Protected Attributes inherited from LibCarna::base::GeometryStage< void >
RenderQueue< void >	rq
	Holds the predefined rendering queue of this rendering stage.

Detailed Description

Renders cutting planes of volume geometries in the scene.

The CuttingPlanesStage constructor takes two geometry type parameters:

planes = new presets::CuttingPlanesStage( GEOMETRY_TYPE_VOLUMETRIC, GEOMETRY_TYPE_CUTTING_PLANE );

renderer->appendStage( planes );

LibCarna::base::RenderStageSequence::appendStage

void appendStage(RenderStage *stage)

Appends stage to the rendering stages sequence.

LibCarna::base::RenderStage::renderer

base::FrameRenderer & renderer()

References the renderer this stage belongs to.

LibCarna::presets::CuttingPlanesStage

Renders cutting planes of volume geometries in the scene.

Definition CuttingPlanesStage.hpp:61

The concept of geometry types is explained here.

The following example code attaches three orthogonal planes to a node named pivot:

    pivot->localTransform = base::math::plane4f( base::math::Vector3f( 1, 1, 1 ).normalized(), 0 );

    /* Create the planes.
     */
    base::Geometry* planes[ 3 ];
    for( unsigned int i = 0; i < 3; ++i )
    {
        planes[ i ] = new base::Geometry( GEOMETRY_TYPE_CUTTING_PLANE );
        pivot->attachChild( planes[ i ] );
    }

    /* Configure the planes.
     */
    planes[ 0 ]->localTransform = base::math::plane4f( base::math::Vector3f( 1, 0, 0 ), 0.f );
    planes[ 1 ]->localTransform = base::math::plane4f( base::math::Vector3f( 0, 1, 0 ), 0.f );
    planes[ 2 ]->localTransform = base::math::plane4f( base::math::Vector3f( 0, 0, 1 ), 0.f );

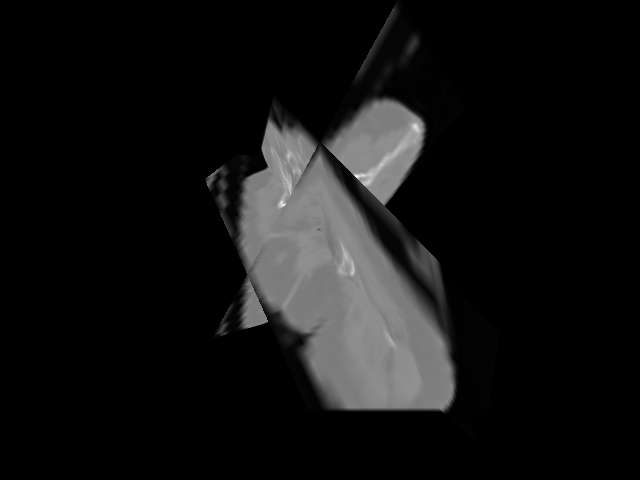

This produces the rendering below.

rendering result of example code above

Author: Leonid Kostrykin

Definition at line 60 of file CuttingPlanesStage.hpp.

Member Function Documentation

◆ buildRenderQueues()

virtual void LibCarna::presets::CuttingPlanesStage::buildRenderQueues	(	base::Node &	root,
		const base::math::Matrix4f &	viewTransform
	)

overrideprotectedvirtual

Builds the rendering queues of this stage.

Reimplemented from LibCarna::base::GeometryStage< void >.

◆ render()

virtual void LibCarna::presets::CuttingPlanesStage::render ( const base::Renderable & renderable )

overrideprotectedvirtual

Renders the renderable.

Implements LibCarna::base::GeometryStage< void >.

◆ renderPass()

virtual void LibCarna::presets::CuttingPlanesStage::renderPass	(	const base::math::Matrix4f &	viewTransform,
		base::RenderTask &	rt,
		const base::Viewport &	vp
	)

overridevirtual

Called once per pass.

If this rendering stage maintains one or more LibCarna::base::RenderQueue objects, than this is the right place to build them. Note that the queues need to be rebuilt only once per frame and not per pass, unless isViewTransformFixed is false. If it is true and this is not the first invocation of this method since the last time prepareFrame was called, rewinding the queue will be sufficient.

Reimplemented from LibCarna::base::GeometryStage< void >.

◆ rewindRenderQueues()

virtual void LibCarna::presets::CuttingPlanesStage::rewindRenderQueues ( )

overrideprotectedvirtual

Rewinds the rendering queues of this stage.

Reimplemented from LibCarna::base::GeometryStage< void >.

◆ setWindowingWidth()

void LibCarna::presets::CuttingPlanesStage::setWindowingWidth ( unsigned int windowingWidth )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ updateRenderQueues()

virtual void LibCarna::presets::CuttingPlanesStage::updateRenderQueues ( const base::math::Matrix4f & viewTransform )

overrideprotectedvirtual

Recomputes the model-view transforms of the renderables enqueued by this stage.

Reimplemented from LibCarna::base::GeometryStage< void >.

Member Data Documentation

◆ colorMap

base::ColorMap LibCarna::presets::CuttingPlanesStage::colorMap

The color map used for the rendering.

Definition at line 97 of file CuttingPlanesStage.hpp.

◆ DEFAULT_WINDOWING_LEVEL

const float LibCarna::presets::CuttingPlanesStage::DEFAULT_WINDOWING_LEVEL

static

Holds the default value for setWindowingLevel.

Definition at line 72 of file CuttingPlanesStage.hpp.

◆ DEFAULT_WINDOWING_WIDTH

const float LibCarna::presets::CuttingPlanesStage::DEFAULT_WINDOWING_WIDTH

static

Holds the default value for setWindowingWidth.

Definition at line 71 of file CuttingPlanesStage.hpp.

◆ planeGeometryType

const unsigned int LibCarna::presets::CuttingPlanesStage::planeGeometryType

Renders such plane geometries whose type equals this.

Definition at line 82 of file CuttingPlanesStage.hpp.

◆ ROLE_INTENSITIES

const unsigned int LibCarna::presets::CuttingPlanesStage::ROLE_INTENSITIES

static

Holds the role that intensity volume data is expected to take when attached to base::Geometry nodes.

Definition at line 78 of file CuttingPlanesStage.hpp.

◆ volumeGeometryType

const unsigned int LibCarna::presets::CuttingPlanesStage::volumeGeometryType

Renders such volume geometries whose type equals this.

Definition at line 80 of file CuttingPlanesStage.hpp.

The documentation for this class was generated from the following file:

include/LibCarna/presets/CuttingPlanesStage.hpp
