LibCarna::presets::MaskRenderingStage Class Reference

Renders 3D masks. More...

#include <MaskRenderingStage.hpp>

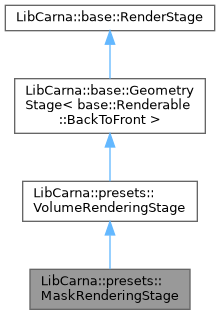

Inheritance diagram for LibCarna::presets::MaskRenderingStage:

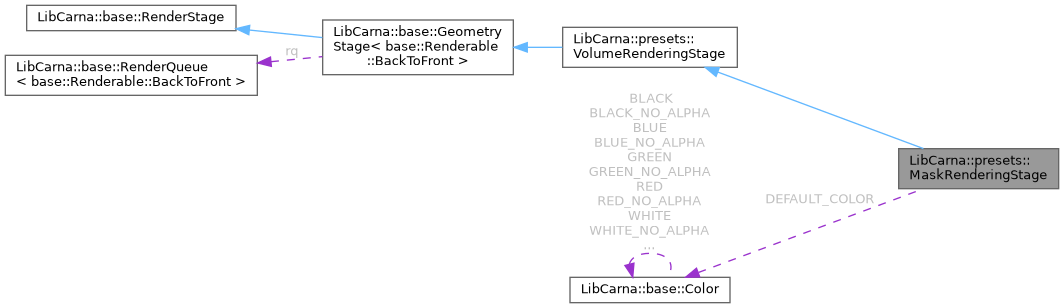

Collaboration diagram for LibCarna::presets::MaskRenderingStage:

Public Member Functions
	MaskRenderingStage (unsigned int geometryType, unsigned int maskRole=DEFAULT_ROLE_MASK)
	Instantiates.
virtual	~MaskRenderingStage ()
	Deletes.
virtual void	reshape (base::FrameRenderer &fr, unsigned int width, unsigned int height) override
	Orders this stage to reshape its buffers according to the specified width and height.
virtual void	renderPass (const base::math::Matrix4f &viewTransform, base::RenderTask &rt, const base::Viewport &vp) override
	Performs the mask rendering.
const base::Color &	color () const
	Tells the rendering color.
void	setColor (const base::Color &color)
	Sets the rendering color.
bool	isFilling () const
	Tells whether filled regions are rendered (instead of borders only).
void	setFilling (bool filled)
	Sets whether to render filled regions (instead of borders only).
Public Member Functions inherited from LibCarna::presets::VolumeRenderingStage
	VolumeRenderingStage (unsigned int geometryType)
	Instantiates. The created stage will render such base::Geometry scene graph nodes, whose geometry types equal geometryType.
virtual	~VolumeRenderingStage ()
	Deletes.
void	setSampleRate (unsigned int sampleRate)
	Sets number of slices to be rendered per segment.
unsigned int	sampleRate () const
	Tells number of slices to be rendered per segment.
Public Member Functions inherited from LibCarna::base::GeometryStage< base::Renderable::BackToFront >
	GeometryStage (unsigned int geometryType, unsigned int geometryTypeMask=RenderQueue< base::Renderable::BackToFront >::EXACT_MATCH_GEOMETRY_TYPE_MASK)
	Instantiates s.t. the predefined rendering queue enqueues such LibCarna::base::Geometry scene graph nodes, whose geometry type AND-linked with geometryTypeMask equals the geometryType specified here.
virtual	~GeometryStage ()
	Releases acquired video resources.
virtual void	prepareFrame (Node &root) override
	Called once before each frame.
std::size_t	renderedPassesCount () const
	Tells the number of passes rendered so far since the beginning of the current frame.
GeometryFeatureType::ManagedInterface &	videoResource (GeometryFeatureType &geometryFeature) const
	Interfaces the geometryFeature video resources that were acquired by this rendering stage.
const GeometryFeatureType::ManagedInterface &	videoResource (const GeometryFeatureType &geometryFeature) const
Public Member Functions inherited from LibCarna::base::RenderStage
	RenderStage ()
	Instantiates in enabled-state.
virtual	~RenderStage ()
	Deletes.
void	setViewTransformFixed (bool viewTransformFixed)
	Sets whether the view transform is pass-invariant for the duration of a single frame.
bool	isViewTransformFixed () const
	Tells whether the view transform is pass-invariant for the duration of a single frame.
bool	isInitialized () const
	Tells whether this stage is ready for rendering.
bool	isEnabled () const
	Tells whether this stage is enabled. Disabled stages are not rendered by render tasks.
void	setEnabled (bool)
	Sets whether this stage is enabled. Disabled stages are not rendered by render tasks.
base::FrameRenderer &	renderer ()
	References the renderer this stage belongs to.
const base::FrameRenderer &	renderer () const
void	addRenderStageListener (RenderStageListener &listener)
	Adds listener to the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).
void	removeRenderStageListener (RenderStageListener &listener)
	Removes listener from the set of listeners this instance notifies in \(\mathcal O\left(\log n\right)\).

Public Attributes
const unsigned int	maskRole
	Holds the role that mask volume data is expected to take when attached to base::Geometry nodes.
Public Attributes inherited from LibCarna::base::GeometryStage< base::Renderable::BackToFront >
const unsigned int	geometryType
	Renders such geometries whose type AND-linked with geometryTypeMask equals this.
const unsigned int	geometryTypeMask
	Renders such geometries whose type AND-linked with this equals geometryType.

Static Public Attributes
static const base::Color	DEFAULT_COLOR
	Holds the default rendering color.
static const unsigned int	DEFAULT_ROLE_MASK
	Holds the default value of maskRole.
static const bool	DEFAULT_FILLING
	Holds the default value of isFilling.
Static Public Attributes inherited from LibCarna::presets::VolumeRenderingStage
static const unsigned int	DEFAULT_SAMPLE_RATE = 200
	Holds the default number of slices rendered per segment.

Protected Member Functions
virtual unsigned int	loadVideoResources () override
	Loads video resources when rendering is triggered for the first time. Override this method if you need any additional resources to be loaded, but always call the base implementation.
virtual void	createVolumeSamplers (const std::function< void(unsigned int, base::Sampler *) > &registerSampler) override
	Creates texture samplers for volume textures and uses registerSampler to assign them to the roles that they should be used with.
virtual const base::ShaderProgram &	acquireShader () override
	Acquires the mask_rendering shader from the base::ShaderManager.
virtual const std::string &	uniformName (unsigned int role) const override
	Maps maskRole to mask.
virtual void	configureShader () override
	Sets the border rendering mode and the rendering color.
virtual void	configureShader (const base::Renderable &) override
	Does nothing.
Protected Member Functions inherited from LibCarna::presets::VolumeRenderingStage
virtual void	render (const base::Renderable &) override
	Renders the renderable.
Protected Member Functions inherited from LibCarna::base::GeometryStage< base::Renderable::BackToFront >
void	activateGLContext () const
	Ensures that the OpenGL context of the hosting LibCarna::base::FrameRenderer is the current one.
virtual void	buildRenderQueues (Node &root, const math::Matrix4f &viewTransform)
	Builds the rendering queues of this stage.
virtual void	rewindRenderQueues ()
	Rewinds the rendering queues of this stage.
virtual void	updateRenderQueues (const math::Matrix4f &viewTransform)
	Recomputes the model-view transforms of the renderables enqueued by this stage.

Additional Inherited Members
Protected Attributes inherited from LibCarna::base::GeometryStage< base::Renderable::BackToFront >
RenderQueue< base::Renderable::BackToFront >	rq
	Holds the predefined rendering queue of this rendering stage.

Detailed Description

Renders 3D masks.

The MaskRenderingStage constructor takes a geometry type parameter:

    mr = new presets::MaskRenderingStage( GEOMETRY_TYPE_VOLUMETRIC );
    renderer->appendStage( mr );

The concept of geometry types is explained here.

Note

In the rendering process this stage will usually be inserted as the last stage.

A mask can be produced, for example, by threshold a 3D intensity image:

    mask.reset( new base::IntensityVolumeUInt8( scene->volume().size ) );
    for( std::size_t pos = 0; pos < mask->buffer().size(); ++pos )
    {
        mask->buffer()[ pos ] = scene->volume().buffer()[ pos ] > 48000 ? 255 : 0;
    }

    base::BufferedVectorFieldTexture< base::IntensityVolumeUInt8 >& maskTexture
        = base::BufferedVectorFieldTexture< base::IntensityVolumeUInt8 >::create( *mask );

The mask can then be attached to, for example, an already existing geometry node:

    geometry.putFeature( mr->maskRole, maskTexture );
    maskTexture.release();

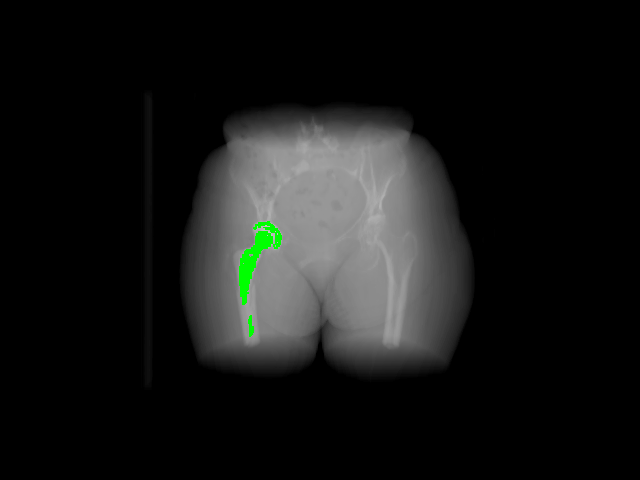

This will render an image similar to this:

exemplary rendering from code above

Author

Leonid Kostrykin

Definition at line 58 of file MaskRenderingStage.hpp.

Constructor & Destructor Documentation

MaskRenderingStage()

LibCarna::presets::MaskRenderingStage::MaskRenderingStage ( unsigned int  geometryType, unsigned int  maskRole = DEFAULT_ROLE_MASK  )

explicit

Instantiates.

The created stage will render such base::Geometry scene graph nodes, whose geometry types equal geometryType. The mask data will be obtained from maskRole.

Member Function Documentation

acquireShader()

virtual const base::ShaderProgram & LibCarna::presets::MaskRenderingStage::acquireShader ( )

overrideprotectedvirtual

Acquires the mask_rendering shader from the base::ShaderManager.

Implements LibCarna::presets::VolumeRenderingStage.

configureShader() [1/2]

virtual void LibCarna::presets::MaskRenderingStage::configureShader ( )

overrideprotectedvirtual

Sets the border rendering mode and the rendering color.

Implements LibCarna::presets::VolumeRenderingStage.

configureShader() [2/2]

virtual void LibCarna::presets::MaskRenderingStage::configureShader ( const base::Renderable &  )

overrideprotectedvirtual

Does nothing.

Implements LibCarna::presets::VolumeRenderingStage.

createVolumeSamplers()

virtual void LibCarna::presets::MaskRenderingStage::createVolumeSamplers ( const std::function< void(unsigned int, base::Sampler *) > &  registerSampler )

overrideprotectedvirtual

Creates texture samplers for volume textures and uses registerSampler to assign them to the roles that they should be used with.

Implements LibCarna::presets::VolumeRenderingStage.

loadVideoResources()

virtual unsigned int LibCarna::presets::MaskRenderingStage::loadVideoResources ( )

overrideprotectedvirtual

Loads video resources when rendering is triggered for the first time. Override this method if you need any additional resources to be loaded, but always call the base implementation.

Returns

the first texture unit to use for volume textures. The dafault implementation returns base::Texture<0>::SETUP_UNIT +1.

Reimplemented from LibCarna::presets::VolumeRenderingStage.

renderPass()

virtual void LibCarna::presets::MaskRenderingStage::renderPass ( const base::math::Matrix4f &  viewTransform, base::RenderTask &  rt, const base::Viewport &  vp  )

overridevirtual

Performs the mask rendering.

Reimplemented from LibCarna::presets::VolumeRenderingStage.

reshape()

virtual void LibCarna::presets::MaskRenderingStage::reshape ( base::FrameRenderer &  fr, unsigned int  width, unsigned int  height  )

overridevirtual

Orders this stage to reshape its buffers according to the specified width and height.

Attention

Always call the base implementaion!

Parameters

fr	references the frame renderer this stage belongs to.
width	is the root viewport width.
height	is the root viewport height.

Reimplemented from LibCarna::base::RenderStage.

uniformName()

virtual const std::string & LibCarna::presets::MaskRenderingStage::uniformName ( unsigned int  role ) const

overrideprotectedvirtual

Maps maskRole to mask.

Implements LibCarna::presets::VolumeRenderingStage.

Member Data Documentation

DEFAULT_COLOR

const base::Color LibCarna::presets::MaskRenderingStage::DEFAULT_COLOR

static

Holds the default rendering color.

Definition at line 66 of file MaskRenderingStage.hpp.

DEFAULT_FILLING

const bool LibCarna::presets::MaskRenderingStage::DEFAULT_FILLING

static

Holds the default value of isFilling.

Definition at line 68 of file MaskRenderingStage.hpp.

DEFAULT_ROLE_MASK

const unsigned int LibCarna::presets::MaskRenderingStage::DEFAULT_ROLE_MASK

static

Holds the default value of maskRole.

Definition at line 67 of file MaskRenderingStage.hpp.

maskRole

const unsigned int LibCarna::presets::MaskRenderingStage::maskRole

Holds the role that mask volume data is expected to take when attached to base::Geometry nodes.

Definition at line 74 of file MaskRenderingStage.hpp.

---

The documentation for this class was generated from the following file:

• include/LibCarna/presets/MaskRenderingStage.hpp
