Computes the partitioning of volumetric data and the corresponding normal map. Also creates scene nodes that insert the volumetric data into a scene. More...

#include <VolumeGridHelper.hpp>

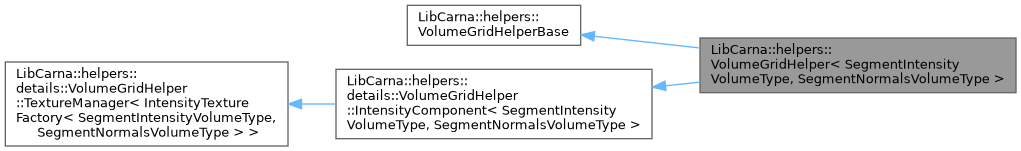

Inheritance diagram for LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >:

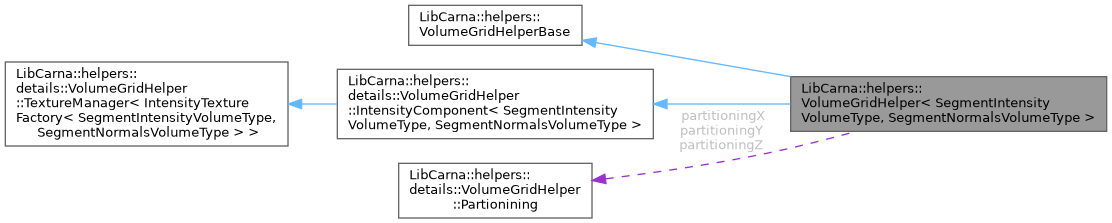

Collaboration diagram for LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >:

Public Member Functions
	VolumeGridHelper (const base::math::Vector3ui &nativeResolution, std::size_t maxSegmentBytesize=DEFAULT_MAX_SEGMENT_BYTESIZE)
	Creates a new base::VolumeGrid object. Initializes the segments of the grid so that the totally covered resolution is resolution or larger. It will be larger if the resolution of the buffers need to be rounded to even numbers.

virtual void	releaseGeometryFeatures () override
	Releases all previously acquired textures. Invoke this method when the volume data changes, loadIntensities already does takes care of that.

base::VolumeGrid< SegmentIntensityVolumeType, SegmentNormalsVolumeType > &	grid () const
	References the underlying grid.

virtual base::Node *	createNode (unsigned int geometryType, const Spacing &spacing) const override
	Creates renderable representation of the underlying grid, that can be put anywhere in the scene graph. The volume is centered in the node.

virtual base::Node *	createNode (unsigned int geometryType, const Extent &extent) const override
	Creates renderable representation of the underlying grid, that can be put anywhere in the scene graph. The volume is centered in the node.

template<typename LoadIntensitiesFunction >
void	loadIntensities (const LoadIntensitiesFunction &intensityData)

virtual void	loadIntensities (const std::function< float(const base::math::Vector3ui &) > &intensityData)=0
	Updates the data of the volume grid.

Public Member Functions inherited from LibCarna::helpers::VolumeGridHelperBase
	VolumeGridHelperBase (const base::math::Vector3ui &nativeResolution)
	Instantiates.

virtual	~VolumeGridHelperBase ()
	Does nothing.

template<typename LoadIntensitiesFunction >
void	loadIntensities (const LoadIntensitiesFunction &intensityData)

Public Member Functions inherited from LibCarna::helpers::details::VolumeGridHelper::IntensityComponent< SegmentIntensityVolumeType, SegmentNormalsVolumeType >
	IntensityComponent ()
	Sets the role to use for attaching textures to base::Geometry nodes to DEFAULT_ROLE_INTENSITIES.

void	setIntensitiesRole (unsigned int role)
	Sets the role to use for attaching textures to base::Geometry nodes.

unsigned int	intensitiesRole () const
	Tels the role used for attaching textures to base::Geometry nodes.

Public Member Functions inherited from LibCarna::helpers::details::VolumeGridHelper::TextureManager< IntensityTextureFactory< SegmentIntensityVolumeType, SegmentNormalsVolumeType > >
virtual	~TextureManager ()
	Releases all textures and deletes.

void	releaseGeometryFeatures ()
	Releases all textures.

Public Attributes
const std::size_t	maxSegmentBytesize
	Maximum memory size of a single segment volume.

const base::math::Vector3ui	maxSegmentSize
	The maximum effective resolution of a single grid segment.

const details::VolumeGridHelper::Partionining	partitioningX
	Describes the partitioning along the x-axis.

const details::VolumeGridHelper::Partionining	partitioningY
	Describes the partitioning along the y-axis.

const details::VolumeGridHelper::Partionining	partitioningZ
	Describes the partitioning along the z-axis.

const base::math::Vector3ui	resolution
	Holds the effective resolution, i.e. the resolution covered by the grid.

Public Attributes inherited from LibCarna::helpers::VolumeGridHelperBase
const base::math::Vector3ui	nativeResolution
	Holds the original resolution of the loaded data.

Protected Member Functions
virtual base::math::Vector3ui	gridResolution () const override

virtual void	loadIntensities (const std::function< float(const base::math::Vector3ui &) > &intensityData) override
	Updates the data of the volume grid.

Protected Member Functions inherited from LibCarna::helpers::details::VolumeGridHelper::IntensityComponent< SegmentIntensityVolumeType, SegmentNormalsVolumeType >
void	attachTexture (base::Geometry &geometry, const base::VolumeSegment< SegmentIntensityVolumeType, SegmentNormalsVolumeType > &segment) const
	Attaches the texture that represents the base::VolumeSegment::intensities of segment to geometry using the previously configured role.

void	initializeSegment (base::VolumeSegment< SegmentIntensityVolumeType, SegmentNormalsVolumeType > &segment, const base::math::Vector3ui &size) const
	Initializes intensity volume of segment.

Protected Member Functions inherited from LibCarna::helpers::details::VolumeGridHelper::TextureManager< IntensityTextureFactory< SegmentIntensityVolumeType, SegmentNormalsVolumeType > >
void	attachTexture (base::Geometry &geometry, unsigned int role, const base::VolumeSegment< typename TextureFactory::SegmentIntensityVolume, typename TextureFactory::SegmentNormalsVolume > &segment) const
	Attaches the texture that `TextureFactory` creates from segment to geometry using role.

Additional Inherited Members
Static Public Attributes inherited from LibCarna::helpers::VolumeGridHelperBase
static const std::size_t	DEFAULT_MAX_SEGMENT_BYTESIZE = 2 * 300 * 300 * 300
	Default maximum memory size of a single segment volume, 50 megabytes approximately. This determines the segments partitioning.

Static Public Attributes inherited from LibCarna::helpers::details::VolumeGridHelper::IntensityComponent< SegmentIntensityVolumeType, SegmentNormalsVolumeType >
static const unsigned int	DEFAULT_ROLE_INTENSITIES = 0
	Holds the default role to use for attaching textures to base::Geometry nodes.

Detailed Description

template<typename SegmentIntensityVolumeType, typename SegmentNormalsVolumeType>
class LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >

Computes the partitioning of volumetric data and the corresponding normal map. Also creates scene nodes that insert the volumetric data into a scene.

Parameters

SegmentIntensityVolumeType	is the base::BufferedIntensityVolume compatible type to use for storing the intensity volume of a single partition.
SegmentNormalsVolumeType	is the base::BufferedNormalMap3D compatible type to use for storing the normal map of a single partition. Set to `void` if a normal map is not required.

Normal Map Computation

The loadIntensities method performs the computation of the normals automatically. If the intensities are changed in a different way, it is within your responsibility to perform the computation of the normals by calling computeNormals on this object. Note that the computeNormals method is only available if SegmentNormalsVolumeType is not void.

Resolutions

This class needs to distinguish between three kinds of resolutions. The grid's volume textures are not disjoint, but must maintain redundant voxels along the segment faces that they have in common. Hence, the resolution of the data uploaded to the GPU from all segments, that is therefore called the total resolution, will usually be greater than the native resolution of the data passed to loadIntensities.

Furthermore, the effective resolution, that is the one covered by the grid and available for payload, might still be greater than the native resolution, because the resolution of the segments is rounded to even numbers. The additional voxels arising from this are not queried from the data source, but padded automatically.

Definition at line 218 of file VolumeGridHelper.hpp.

Constructor & Destructor Documentation

◆ VolumeGridHelper()

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::VolumeGridHelper	(	const base::math::Vector3ui &	nativeResolution,
		std::size_t	maxSegmentBytesize = `DEFAULT_MAX_SEGMENT_BYTESIZE`
	)

Creates a new base::VolumeGrid object. Initializes the segments of the grid so that the totally covered resolution is resolution or larger. It will be larger if the resolution of the buffers need to be rounded to even numbers.

Parameters

nativeResolution	The resolution the grid is to be prepared for. This is the resolution that will be expected from the data source.
maxSegmentBytesize	Maximum memory size of a single segment volume. The segments partitioning is chosen according to this value.

Definition at line 351 of file VolumeGridHelper.hpp.

Member Function Documentation

◆ createNode() [1/2]

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

base::Node * LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::createNode	(	unsigned int	geometryType,
		const Extent &	extent
	)		const

overridevirtual

Creates renderable representation of the underlying grid, that can be put anywhere in the scene graph. The volume is centered in the node.

Warning: Only change the returned node's localTransform attribute when you know what you're doing! Put it into another node otherwise.

Parameters

geometryType	Will be used for base::Geometry instantiation.
extent	Specifies the extent of the whole dataset.

Implements LibCarna::helpers::VolumeGridHelperBase.

Definition at line 510 of file VolumeGridHelper.hpp.

◆ createNode() [2/2]

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

base::Node * LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::createNode	(	unsigned int	geometryType,
		const Spacing &	spacing
	)		const

overridevirtual

Creates renderable representation of the underlying grid, that can be put anywhere in the scene graph. The volume is centered in the node.

Warning: Only change the returned node's localTransform attribute when you know what you're doing! Put it into another node otherwise.

Parameters

geometryType	Will be used for base::Geometry instantiation.
spacing	Specifies the spacing between two succeeding voxel centers.

Implements LibCarna::helpers::VolumeGridHelperBase.

Definition at line 499 of file VolumeGridHelper.hpp.

◆ grid()

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

base::VolumeGrid< SegmentIntensityVolumeType, SegmentNormalsVolumeType > & LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::grid ( ) const

References the underlying grid.

Definition at line 412 of file VolumeGridHelper.hpp.

◆ gridResolution()

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

base::math::Vector3ui LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::gridResolution ( ) const

overrideprotectedvirtual

Definition at line 521 of file VolumeGridHelper.hpp.

◆ loadIntensities() [1/3]

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

template<typename LoadIntensitiesFunction >

void LibCarna::helpers::VolumeGridHelperBase::loadIntensities ( const LoadIntensitiesFunction & intensityData )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 154 of file VolumeGridHelper.hpp.

◆ loadIntensities() [2/3]

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

void LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::loadIntensities ( const std::function< float(const base::math::Vector3ui &) > & intensityData )

overrideprotectedvirtual

Updates the data of the volume grid.

The intensityData must be scaled to \(\left[0, 1\right]\).

Parameters

intensityData Unary function that maps base::math::Vector3ui to an intensity value. It will be queried for all values up to nativeResolution.

The normal map is re-computed if SegmentNormalsVolumeType is not void.

Implements LibCarna::helpers::VolumeGridHelperBase.

Definition at line 393 of file VolumeGridHelper.hpp.

◆ loadIntensities() [3/3]

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

virtual void LibCarna::helpers::VolumeGridHelperBase::loadIntensities ( const std::function< float(const base::math::Vector3ui &) > & intensityData )

virtual

Updates the data of the volume grid.

The intensityData must be scaled to \(\left[0, 1\right]\).

Implements LibCarna::helpers::VolumeGridHelperBase.

◆ releaseGeometryFeatures()

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

void LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::releaseGeometryFeatures ( )

overridevirtual

Releases all previously acquired textures. Invoke this method when the volume data changes, loadIntensities already does takes care of that.

If this method is not invoked after an update of the volume data, succeeding calls to createNode will not reflect the new data. Note however, that if you call this method between two invocations of createNode without the volume data been altered, same textures will get uploaded twice to video memory, i.e. video resources will be wasted.

Implements LibCarna::helpers::VolumeGridHelperBase.

Definition at line 385 of file VolumeGridHelper.hpp.

Member Data Documentation

◆ maxSegmentBytesize

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const std::size_t LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::maxSegmentBytesize

Maximum memory size of a single segment volume.

Definition at line 255 of file VolumeGridHelper.hpp.

◆ maxSegmentSize

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const base::math::Vector3ui LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::maxSegmentSize

The maximum effective resolution of a single grid segment.

Definition at line 260 of file VolumeGridHelper.hpp.

◆ partitioningX

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const details::VolumeGridHelper::Partionining LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::partitioningX

Describes the partitioning along the x-axis.

Definition at line 265 of file VolumeGridHelper.hpp.

◆ partitioningY

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const details::VolumeGridHelper::Partionining LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::partitioningY

Describes the partitioning along the y-axis.

Definition at line 270 of file VolumeGridHelper.hpp.

◆ partitioningZ

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const details::VolumeGridHelper::Partionining LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::partitioningZ

Describes the partitioning along the z-axis.

Definition at line 275 of file VolumeGridHelper.hpp.

◆ resolution

template<typename SegmentIntensityVolumeType , typename SegmentNormalsVolumeType >

const base::math::Vector3ui LibCarna::helpers::VolumeGridHelper< SegmentIntensityVolumeType, SegmentNormalsVolumeType >::resolution

Holds the effective resolution, i.e. the resolution covered by the grid.

Definition at line 280 of file VolumeGridHelper.hpp.

The documentation for this class was generated from the following file:

include/LibCarna/helpers/VolumeGridHelper.hpp
