LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType > Class Template Reference

Implements NormalMap3D generically for a particular VoxelType. More...

#include <BufferedNormalMap3D.hpp>

Inheritance diagram for LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >:

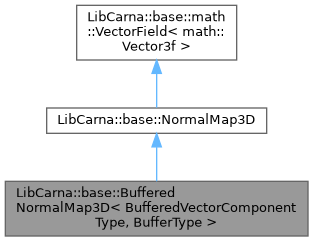

Collaboration diagram for LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >:

Public Types
typedef BufferType	Buffer
	Holds the used buffer type.
typedef BufferedVectorComponentType	BufferedVectorComponent
	Holds the type used to store the components of the normal vectors.
Public Types inherited from LibCarna::base::math::VectorField< math::Vector3f >
typedef math::Vector3f	Value
	Holds the co-domain type of the vector field.

Public Member Functions
	BufferedNormalMap3D (const math::Vector3ui &size, Association< BufferType > *buffer)
	Instantiates.
	BufferedNormalMap3D (const math::Vector3ui &size)
math::Vector3f	operator() (const math::Vector3ui &location) const
	Decodes and tells the vector stored at location.
math::Vector3f	operator() (unsigned int x, unsigned int y, unsigned int z) const
void	setVoxel (const math::Vector3ui &location, const math::Vector3f &normal)
	Encodes normal and stores it at location.
void	setVoxel (unsigned int x, unsigned int y, unsigned int z, const math::Vector3f &normal)
BufferType &	buffer ()
	References the underlying buffer.
const BufferType &	buffer () const
	References the underlying buffer.
Public Member Functions inherited from LibCarna::base::NormalMap3D
	NormalMap3D ()
	Instantiates.
	NormalMap3D (const math::Vector3ui &size)
	Instantiates.
Public Member Functions inherited from LibCarna::base::math::VectorField< math::Vector3f >
virtual	~VectorField ()
	Does nothing.

Static Public Member Functions
static float	decodeComponent (BufferedVectorComponentType encodedVectorComponent)
	Returns the actual normal vector component corresponding to encodedVectorComponent.
static BufferedVectorComponentType	encodeComponent (float actualVectorComponent)
	Returns the buffered vector component corresponding to actualVectorComponent.

Protected Attributes
const std::unique_ptr< Association< BufferType > >	myBuffer
	Holds the buffer.

Additional Inherited Members
Public Attributes inherited from LibCarna::base::NormalMap3D
math::Vector3ui	size
	Holds the resolution.

Detailed Description

template<typename BufferedVectorComponentType, typename BufferType>
class LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >

Implements NormalMap3D generically for a particular VoxelType.

Parameters

BufferedVectorComponentType	is the data type used to store the components of a single normal. Only integral data types are allowed.
BufferType	is the data type used as container for the normal vectors.

Note

Although three channels would be sufficient to store the three components of a normal vector, we use four channels here. The reasons for this is that glTexImage3d caused read access errors on Windows when used with three channel textures, whereas it worked nicely on Linux. This class ignores the values stored within the fourth channel.

Author

Leonid Kostrykin

Definition at line 62 of file BufferedNormalMap3D.hpp.

Member Typedef Documentation

Buffer

template<typename BufferedVectorComponentType , typename BufferType >

typedef BufferType LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::Buffer

Holds the used buffer type.

Definition at line 74 of file BufferedNormalMap3D.hpp.

BufferedVectorComponent

template<typename BufferedVectorComponentType , typename BufferType >

typedef BufferedVectorComponentType LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::BufferedVectorComponent

Holds the type used to store the components of the normal vectors.

Definition at line 79 of file BufferedNormalMap3D.hpp.

Constructor & Destructor Documentation

BufferedNormalMap3D() [1/2]

template<typename BufferedVectorComponentType , typename BufferType >

LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::BufferedNormalMap3D ( const math::Vector3ui &  size, Association< BufferType > *  buffer  )

inline

Instantiates.

Precondition

buffer != nullptr && buffer->get() != nullptr

(**buffer).size() >= 4 * sizeof(BufferedVectorComponentType) * size.x * size.y * size.z

Definition at line 87 of file BufferedNormalMap3D.hpp.

BufferedNormalMap3D() [2/2]

template<typename BufferedVectorComponentType , typename BufferType >

LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::BufferedNormalMap3D ( const math::Vector3ui &  size )

inlineexplicit

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 96 of file BufferedNormalMap3D.hpp.

Member Function Documentation

buffer() [1/2]

template<typename BufferedVectorComponentType , typename BufferType >

BufferType & LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::buffer ( )

inline

References the underlying buffer.

Definition at line 188 of file BufferedNormalMap3D.hpp.

buffer() [2/2]

template<typename BufferedVectorComponentType , typename BufferType >

const BufferType & LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::buffer ( ) const

inline

References the underlying buffer.

Definition at line 196 of file BufferedNormalMap3D.hpp.

decodeComponent()

template<typename BufferedVectorComponentType , typename BufferType >

static float LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::decodeComponent ( BufferedVectorComponentType  encodedVectorComponent )

inlinestatic

Returns the actual normal vector component corresponding to encodedVectorComponent.

This function maps encodedVectorComponent to \(\left[-1, 1\right]\), whereby the minimum of BufferedVectorComponentType is mapped to \(-1\) and its maximum to \(+1\).

Definition at line 112 of file BufferedNormalMap3D.hpp.

encodeComponent()

template<typename BufferedVectorComponentType , typename BufferType >

static BufferedVectorComponentType LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::encodeComponent ( float  actualVectorComponent )

inlinestatic

Returns the buffered vector component corresponding to actualVectorComponent.

This function maps actualVectorComponent to values from the minimum of BufferedVectorComponentType to its maximum linearly.

Precondition

std::abs(actualVectorComponent) <= 1

Definition at line 130 of file BufferedNormalMap3D.hpp.

operator()() [1/2]

template<typename BufferedVectorComponentType , typename BufferType >

math::Vector3f LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::operator() ( const math::Vector3ui &  location ) const

inlinevirtual

Decodes and tells the vector stored at location.

Reimplemented from LibCarna::base::math::VectorField< math::Vector3f >.

Definition at line 146 of file BufferedNormalMap3D.hpp.

operator()() [2/2]

template<typename BufferedVectorComponentType , typename BufferType >

math::Vector3f LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::operator() ( unsigned int  x, unsigned int  y, unsigned int  z  ) const

inlinevirtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Implements LibCarna::base::math::VectorField< math::Vector3f >.

Definition at line 153 of file BufferedNormalMap3D.hpp.

setVoxel() [1/2]

template<typename BufferedVectorComponentType , typename BufferType >

void LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::setVoxel ( const math::Vector3ui &  location, const math::Vector3f &  normal  )

inline

Encodes normal and stores it at location.

Definition at line 169 of file BufferedNormalMap3D.hpp.

setVoxel() [2/2]

template<typename BufferedVectorComponentType , typename BufferType >

void LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::setVoxel ( unsigned int  x, unsigned int  y, unsigned int  z, const math::Vector3f &  normal  )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 176 of file BufferedNormalMap3D.hpp.

Member Data Documentation

myBuffer

template<typename BufferedVectorComponentType , typename BufferType >

const std::unique_ptr< Association< BufferType > > LibCarna::base::BufferedNormalMap3D< BufferedVectorComponentType, BufferType >::myBuffer

protected

Holds the buffer.

Definition at line 206 of file BufferedNormalMap3D.hpp.

---

The documentation for this class was generated from the following file:

• include/LibCarna/base/BufferedNormalMap3D.hpp
