LibCarna::base::BoundingVolume Class Reference

Represents a Geometry minimal boundary volume of simple geometric shape. The volume is centered within its local coordinate system. More...

#include <BoundingVolume.hpp>

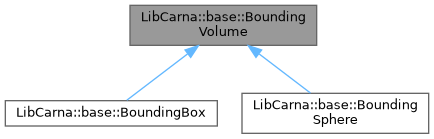

Inheritance diagram for LibCarna::base::BoundingVolume:

Public Member Functions
	BoundingVolume ()
	Instantiates.
virtual	~BoundingVolume ()
	Deletes.
virtual void	computeClosemostPoint (math::Vector3f &out, const math::Vector3f &reference) const =0
	Computes the point out in model space that is close-most to reference, that is also in model space.
void	setTransform (const math::Matrix4f &transform)
	Sets the transform from the local coordinate system of this bounding volume to the Geometry object that uses it.
const math::Matrix4f &	transform () const
	Tells the transform from the local coordinate system of this bounding volume to the model space of the Geometry object that uses it.
const math::Matrix4f &	inverseTransform () const
	Tells the transform from the model space of the Geometry object that uses this bounding volume to its local coordinate system.

Detailed Description

Represents a Geometry minimal boundary volume of simple geometric shape. The volume is centered within its local coordinate system.

Author

Leonid Kostrykin

Definition at line 45 of file BoundingVolume.hpp.

Member Function Documentation

computeClosemostPoint()

virtual void LibCarna::base::BoundingVolume::computeClosemostPoint ( math::Vector3f &  out, const math::Vector3f &  reference  ) const

pure virtual

Computes the point out in model space that is close-most to reference, that is also in model space.

Implemented in LibCarna::base::BoundingBox, and LibCarna::base::BoundingSphere.

---

The documentation for this class was generated from the following file:

• include/LibCarna/base/BoundingVolume.hpp
