LibCarna::base::CameraControl Class Reference

Defines interface for intuitive Camera control. More...

#include <CameraControl.hpp>

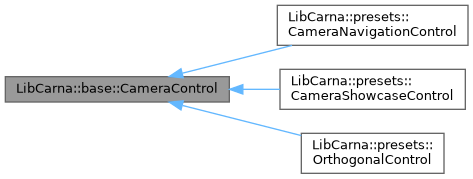

Inheritance diagram for LibCarna::base::CameraControl:

Public Member Functions
virtual	~CameraControl ()
	Does nothing.
virtual void	setCamera (Spatial &camera)=0
	Sets the camera that this object should control.
virtual void	rotateHorizontally (float radians)=0
	Rotates the previously set camera horizontally. The rotation axis depends on the implementation.
virtual void	rotateVertically (float radians)=0
	Rotates the previously set camera vertically. The rotation axis depends on the implementation.
virtual void	moveAxially (float distance)=0
	Moves the camera along its z-axis. The parameters of this movement depend on the implementation.
virtual void	moveLaterally (float distanceX, float distanceY)=0
	Moves the camera along its x-/y-axis. The parameters of this movement depend on the implementation.

Detailed Description

Defines interface for intuitive Camera control.

Author

Leonid Kostrykin

Definition at line 42 of file CameraControl.hpp.

Member Function Documentation

moveAxially()

virtual void LibCarna::base::CameraControl::moveAxially ( float  distance )

pure virtual

Moves the camera along its z-axis. The parameters of this movement depend on the implementation.

Implemented in LibCarna::presets::CameraNavigationControl, LibCarna::presets::CameraShowcaseControl, and LibCarna::presets::OrthogonalControl.

moveLaterally()

virtual void LibCarna::base::CameraControl::moveLaterally ( float  distanceX, float  distanceY  )

pure virtual

Moves the camera along its x-/y-axis. The parameters of this movement depend on the implementation.

Implemented in LibCarna::presets::CameraNavigationControl, LibCarna::presets::CameraShowcaseControl, and LibCarna::presets::OrthogonalControl.

rotateHorizontally()

virtual void LibCarna::base::CameraControl::rotateHorizontally ( float  radians )

pure virtual

Rotates the previously set camera horizontally. The rotation axis depends on the implementation.

Implemented in LibCarna::presets::CameraNavigationControl, LibCarna::presets::CameraShowcaseControl, and LibCarna::presets::OrthogonalControl.

rotateVertically()

virtual void LibCarna::base::CameraControl::rotateVertically ( float  radians )

pure virtual

Rotates the previously set camera vertically. The rotation axis depends on the implementation.

Implemented in LibCarna::presets::CameraNavigationControl, LibCarna::presets::CameraShowcaseControl, and LibCarna::presets::OrthogonalControl.

setCamera()

virtual void LibCarna::base::CameraControl::setCamera ( Spatial &  camera )

pure virtual

Sets the camera that this object should control.

Implemented in LibCarna::presets::CameraNavigationControl, LibCarna::presets::CameraShowcaseControl, and LibCarna::presets::OrthogonalControl.

---

The documentation for this class was generated from the following file:

• include/LibCarna/base/CameraControl.hpp
